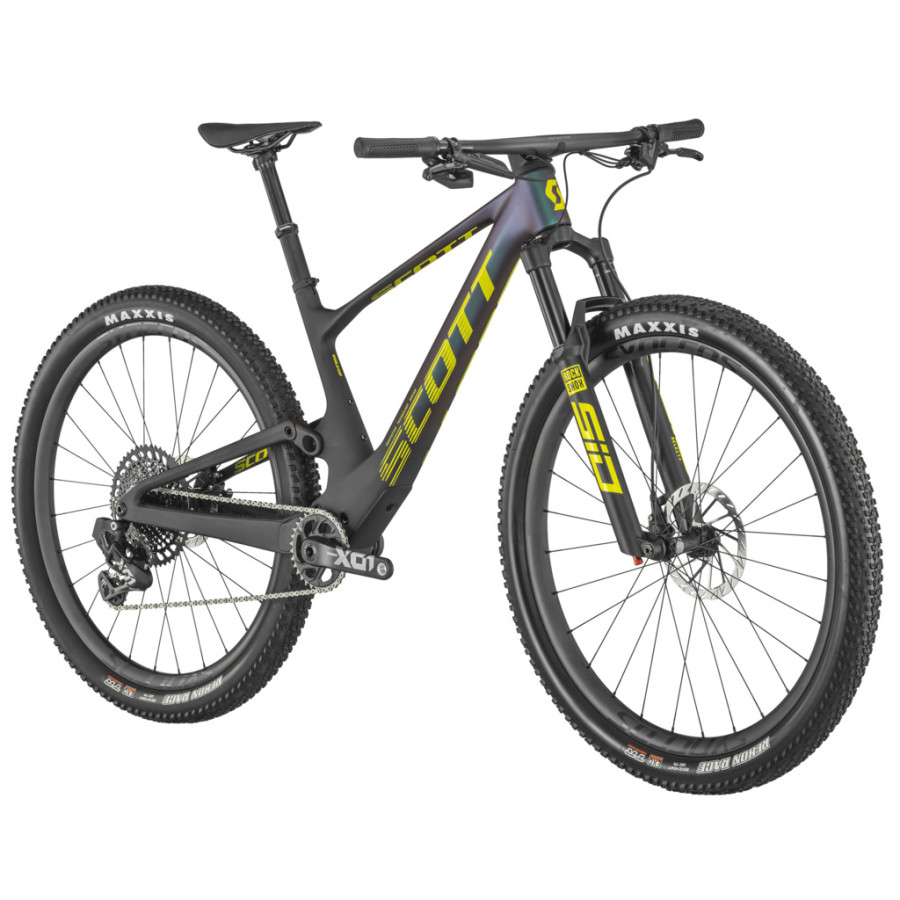

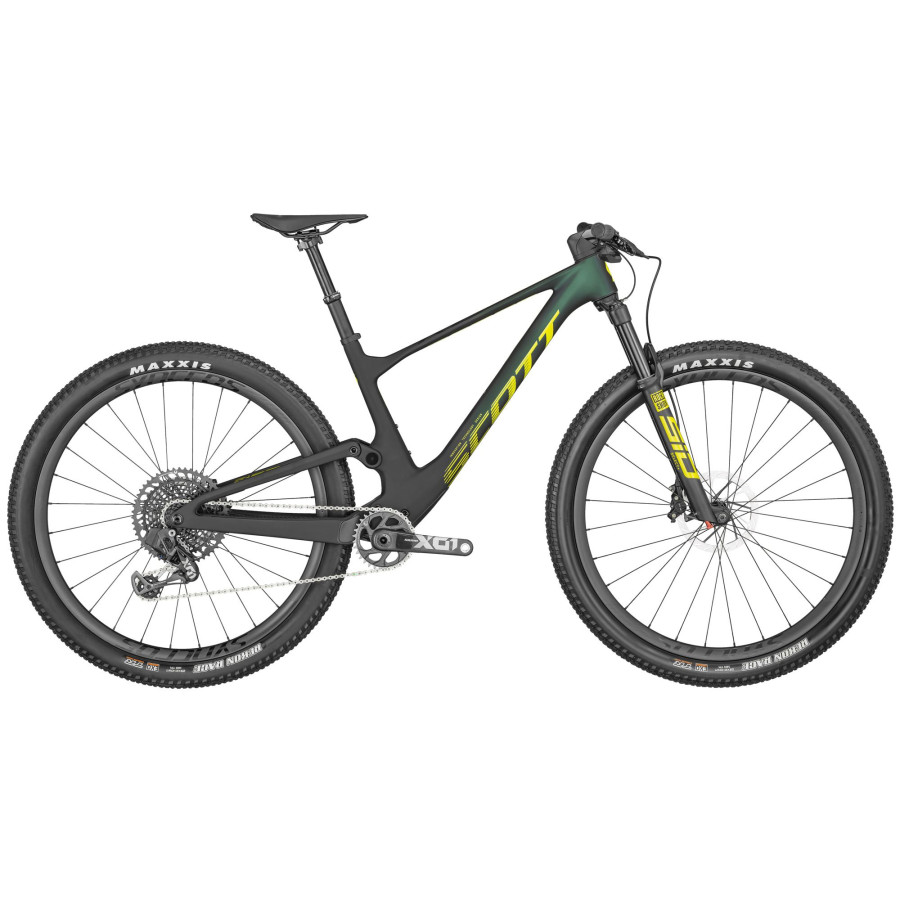

Spark RC World Cup TR

FRAME

Spark RC Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline

FORK

RockShox SID Select+ RL3 Air Custom Charger 3-Mode Damper 15x110mm Maxle Stealth / 44mm offset / Tapered steerer Lockout / Reb. Adj. / 120mm travel

REAR SHOCK

RockShox NUDE 5 RL3 Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Debon Air / Reb. Adj. / Travel 120-80-Lockout / T165X45mm

REMOTE SYSTEM

SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

REAR DERAILLEUR

SRAM X01 Eagle AXS 12 Speed Wireless Electronic Shift System

SHIFTERS

SRAM GX Eagle AXS Rocker Controller

CRANKSET

SRAM X01 DUB Eagle Carbon crankarm 55mm CL / 32T

BB-SET

SRAM DUB PF 92 MTB Wide / shell 41x92mm

CHAIN

SRAM CN X01 Eagle

CASSETTE

SRAM X01 XG1295 / 10-52 T

BRAKES

SRAM Level TLM Disc / tool free reach adj

ROTOR

SRAM HS2 Rotos 180/F and 160/R

HANDLEBAR

Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm Syncros Performance XC lock-on grips

SEATPOST

FOX Transfer SL Performance Elite Dropper Post 31.6mm / S size 75mm / M, L & XL size 100mm

SEAT

Syncros Belcarra Regular 1.5 Titanium rails

HEADSET

Syncros - Acros Angle adjust & Cable Routing HS System Stainless, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

WHEELSET

Syncros Silverton 1.0-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss Ratchet Hubs / XD Driver SRAM TyreWiz ready / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools

FRONT TIRE

Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO

REAR TIRE

Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO

EXTRAS

SRAM AXS Powerpack

ACCESSORIES

Syncros Eco Sealant Transport Axle

APPROX WEIGHTS IN KG

10.9 (Tubeless setup)

APPROX WEIGHTS IN LBS

24.03 (Tubeless setup)

MAX. SYSTEM WEIGHT

128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage
