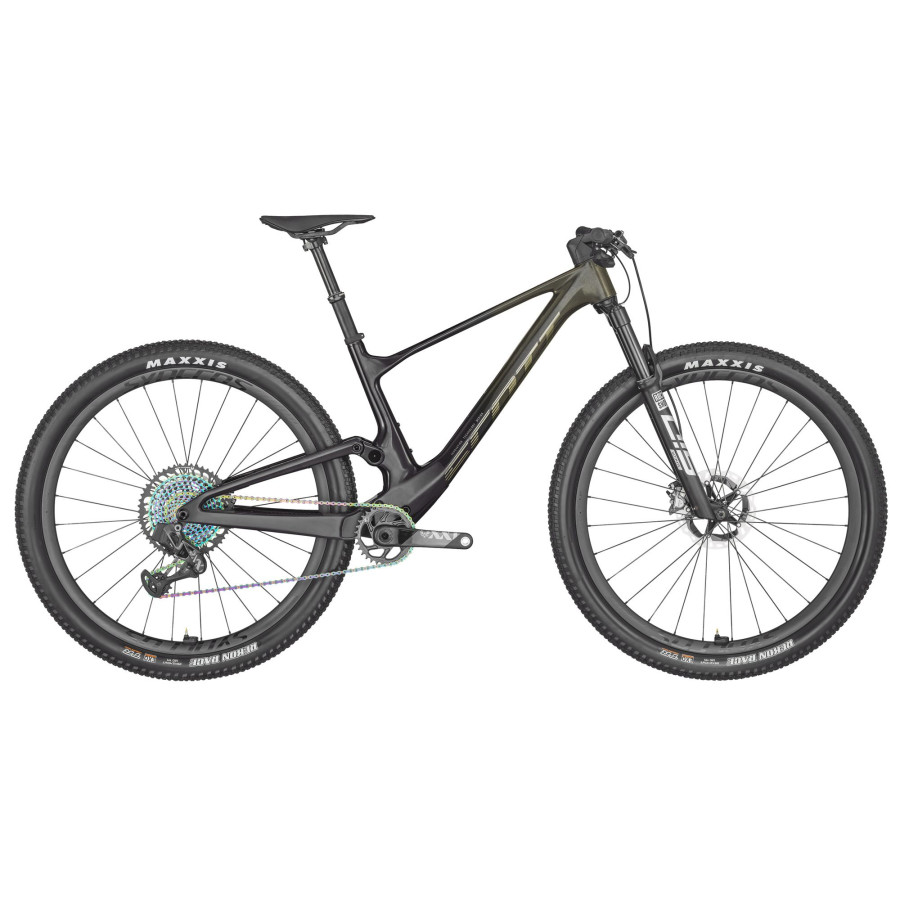

Spark RC World Cup EVO

FRAME

Spark RC Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline

FORK

RockShox SID Ultimate RD3 Air Custom Race Day Charger 3-Mode Damper 15x110mm Maxle Stealth / 44mm offset /Tapered steerer Lockout / Reb. Adj. / 120mm travel

REAR SHOCK

RockShox NUDE 5 RLC3 Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Ad.j / Debon Air / Reb. Adj./ Travel 120-80-Lockout / T165X45mm

REMOTE SYSTEM

SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

REAR DERAILLEUR

SRAM XX1 Eagle AXS 12 Speed Wireless Electronic Shift System

SHIFTERS

SRAM Eagle AXS Rocker Controller

CRANKSET

SRAM XX1 Eagle Carbon crankarm DUB / 55mm CL / 32T

BB-SET

SRAM DUB PF 92 MTB Wide / shell 41x92mm

CHAIN

SRAM CN XX1 Eagle

CASSETTE

SRAM XX1 XG1299 / 10-52 T

BRAKES

Shimano XTR M9100 Disc

ROTOR

Shimano RT-MT900 CL / 180/F and 160/R

HANDLEBAR

Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm Syncros Performance XC lock-on grips

SEATPOST

FOX Transfer SL Performance Elite Dropper Post 31.6mm / S size 75mm / M, L & XL size 100mm

SEAT

Syncros Belcarra 1.0 Regular 1.0 Carbon rails

HEADSET

Syncros - Acros Angle adjust & Cable Routing HS System Stainless, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

WHEELSET

Syncros Silverton 1.0S-30 CL F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools

FRONT TIRE

Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO

REAR TIRE

Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO

EXTRAS

SRAM AXS Powerpack SRAM TyreWiz

ACCESSORIES

Syncros Eco Sealant Transport Axle

APPROX WEIGHTS IN KG

10.4 (Tubeless setup)

APPROX WEIGHTS IN LBS

22.93 (Tubeless setup)

MAX. SYSTEM WEIGHT

128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
