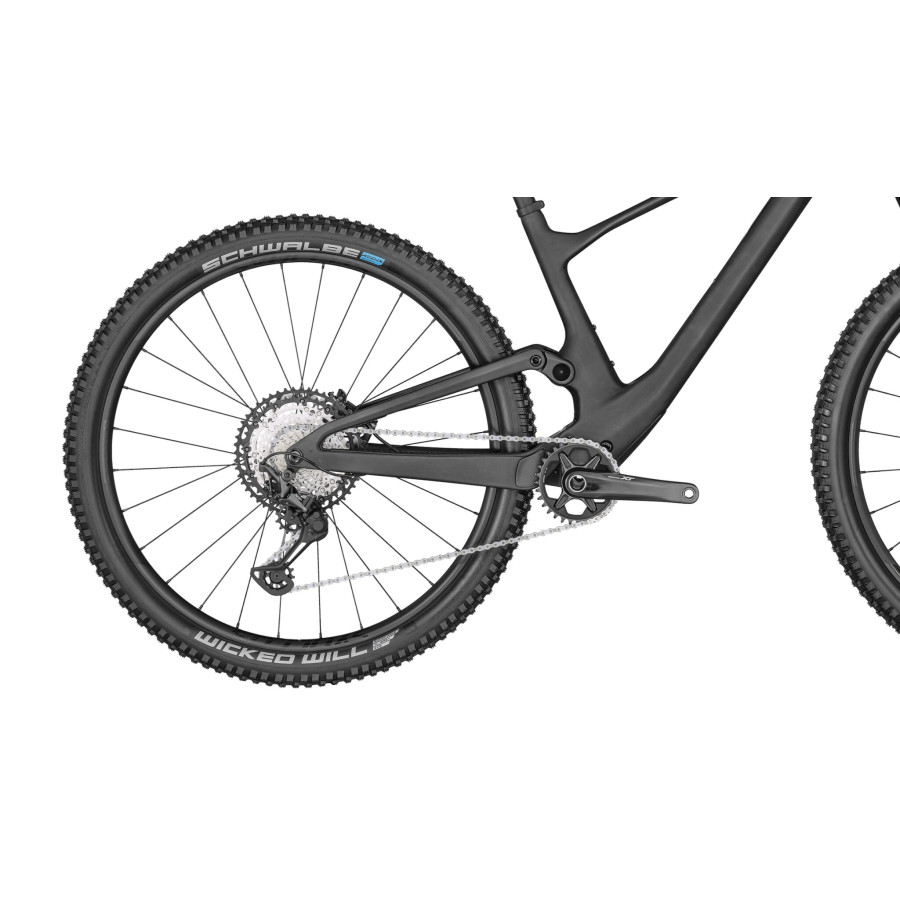

Spark 910

FRAME

Spark Carbon HMF Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline

FORK

FOX 34 Float Performance Elite Air FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Lockout 130mm travel

REAR SHOCK

FOX NUDE 5T EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Reb. Adj. Travel 120-80-Lockout / T165X45mm

REMOTE SYSTEM

SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

REAR DERAILLEUR

Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed

SHIFTERS

Shimano XT SL-M8100-IR / Rapidfire Plus Ispec EV clamp

CRANKSET

Shimano XT FC-M8120-1 / Hollowtech 2 32T

BB-SET

Shimano SM-BB71-41A / shell 41x92mm

CHAIN

Shimano SLX CN-M7100

CASSETTE

Shimano XT CS-M8100-12 / 10-51 T

BRAKES

Shimano XT M8120 4 Piston Disc

ROTOR

Shimano SM-RT76 / 6 Bolt / F&R 180mm

HANDLEBAR

Syncros Fraser iC SL DC Carbon 0° rise / back sweep 8° / mini Rise / 760mm Syncros Performance XC lock-on grips

SEATPOST

FOX Transfer Performance Elite Dropper Post 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm

SEAT

Syncros Tofino 1.5 Regular Titanium rails

HEADSET

Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

WHEELSET

Syncros Silverton 2.0-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready rim 28H / Micro Spline Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools

FRONT TIRE

Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft

REAR TIRE

Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Grip

EXTRAS

Syncros Fork Fender

APPROX WEIGHTS IN KG

12.3 (Tubeless setup)

APPROX WEIGHTS IN LBS

27.12 (Tubeless setup)

MAX. SYSTEM WEIGHT

128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
